Model No.: QZD-400A

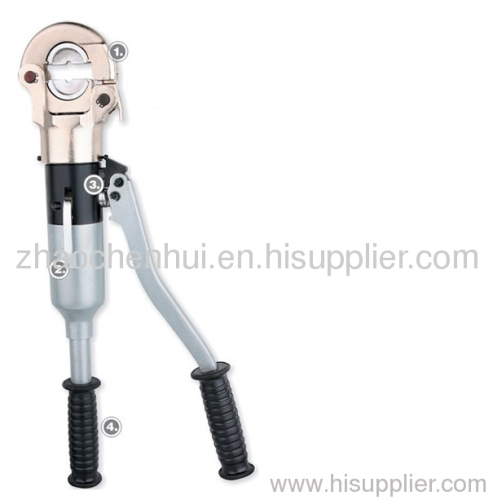

hydraulic pressure pliers QZD-400A
1.Crimping Range:16-400mm2
2.Crimping Force:10T
3.Stroke:16mm
4.Weight:approx. 6.5kg

QZD-400A hydraulic pressure pliers (Safety valve inside)

Crimping Range	16-400mm²
Crimping Force	10T
Crimping Type	hexagon crimping
Stroke	16mm
Oil capacity	145CC
Weight	approx. 6.5kg
Package	Steel case
Standard Accessories	16,25,35,50,70,95,120,150,185,240,300,400mm²

hydraulic pressure pliers Features:

1The hydraulic pressure pliers features a double speed action: a fastadvancing speed for rapid approach of the blades to the connector and aslower more powerful speed for cutting.

2 For ease of operation and comfort the operator the tool head can be fully rotated through 180 º.

3The built-in safely valve will by-pass the oil supply when the maximumpressure is reached, and the pressure of hand crimping tool releasesystem can easily be operated at any stage of compression.

4 The hydrauic crimping tools with interchangeable dies.
